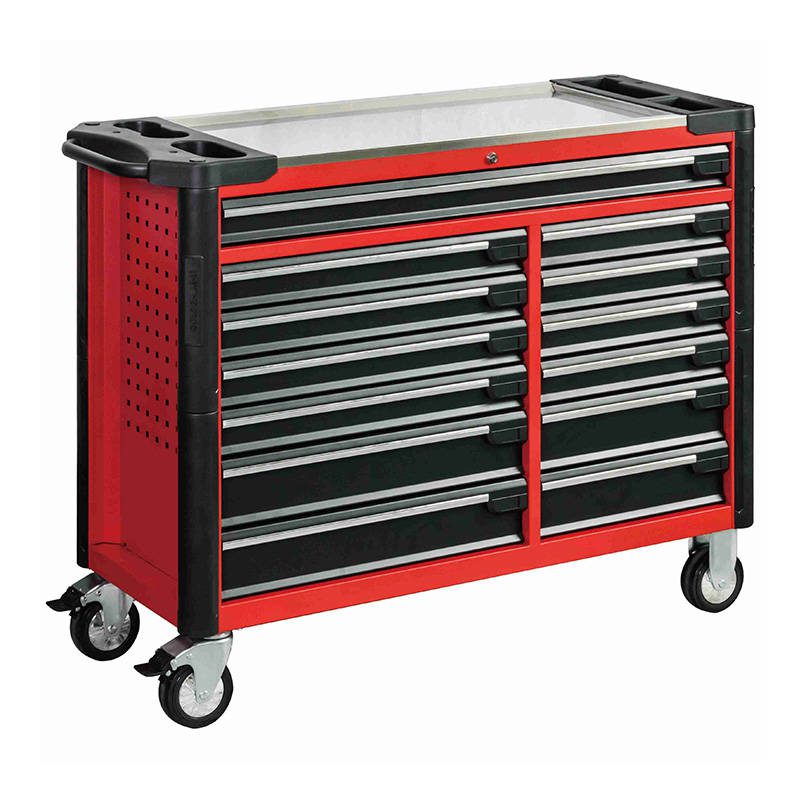

13 Drawers Lengthened Industrial Roller Tool Trolley
1.The body is red color & drawers is matte black color.
2.Plastic corner guards with LOGO are embedded in the four corners.
3.The top equipped with stainless steel working top.
4.Each drawer with auto-return heavy duty ball bearing slide.
5.The edge of the drawer is inlaid with soft silver plastic trim.
6.Strong iron handles on the side.
7.5″*2 casters, 2 fixed ones 2 swivel ones.
8.The maximum capacity of a single drawer is 35KGS.
9.Side holes for hanging tools.
10.Internally welded joints for durability.
11.Equipped with inter-lock system.
|
KN3413XL
|
W
|
x
|
D
|
x
|
H
|
|
|
Overall
|
50.5
|
18.4
|
32.0
|
in.
|
||
|
1282
|
467
|
813
|
mm
|
|||
|
Overall with casters
|
50.5
|
18.4
|
38.7
|
in.
|
||
|
1282
|
467
|
982
|
mm
|
|||
|
Package
|
52.8
|
20.9
|
40.6
|
in.
|
||
|
1340
|
530
|
1030
|
mm
|
|||
|
1 Drawer
|
42.0
|
15.7
|
3.1
|
in.
|
||
|
1068
|
400
|
80
|
mm
|
|||
|
4 Drawers
|
22.4
|
15.7
|
3.1
|
in.
|
||
|
570
|
400
|
80
|
mm
|
|||
|
2 Drawers
|
22.4
|
15.7
|
4.7
|
in.
|
||
|
570
|
400
|
120
|
mm
|
|||
|
4 Drawers
|
15.0
|
15.7
|
3.1
|
in.
|
||
|
380
|
400
|
80
|
mm
|
|||
|
2 Drawers
|
15.0
|
15.7
|
4.7
|
in.
|
||
|
380
|
400
|
120
|
mm
|
|||
|
Unit Weight
|
216.7lbs 98.5kg
|
|||||
|
Ship Weight
|
242.3lbs 109.7kg
|
|||||
|
20`GP 30 pcs
|
40`HQ 60pcs
|
|||||
